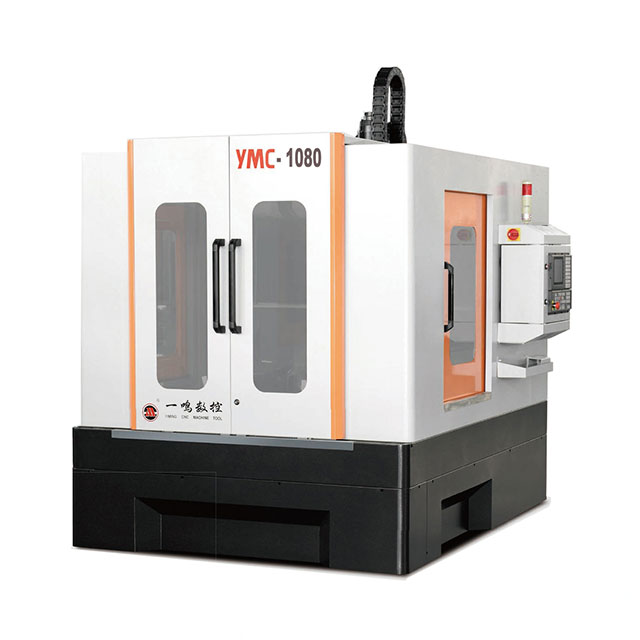

Name: YMC-1080
Category: CNC Engraving And Milling Machine
Product details
| DESCRIPITION | UNIT | YMC-1080 |
| TRAVEL | ||
| X-Axis Travel（beam） | mm | 850 |
| Y-Axis Travel（worktable） | mm | 1050 |
Z-Axis Travel（upper and lower） | mm | 350 |
| Spindle nose end to working table(approximate value) | mm | 460 |
| Distance between two columns(approximate value) | mm | 950 |
| TABLE | ||
| Workbench size (long) | mm | 1000 |
(Wide) | mm | 795 |
| maximum payload | kg | 600 |
| SPINDLE | ||
| Spindle speed/ RPM | rpm | 18000 |
| Spindle power/PR. | kw | 8 |
| Spindle bore taper/TYPE | ER40 | |
| FEED RATE | ||
| C00 Fast Feed (X-axis) | mm/min | 15000 |
| C00 Fast Feed (Y-axis) | mm/min | 15000 |
| C00 Fast Feed (Z-axis) | mm/min | 7500 |
G01 Cutting Feed | mm/min | 1-6000 |
| OTHER | ||
| Machine weight | kg(About) | 5100 |
